The Classic Car Restorer’s Biggest Challenge
Ever held a broken camshaft from a 1967 Shelby GT500 and wondered how on earth you’ll find a replacement? You’re not alone. According to a 2023 Hagerty survey, 78% of classic car restorers cite “sourcing original parts” as their number one challenge.
That rare carburetor, the discontinued trim piece, or that impossible-to-find transmission component – when the original manufacturer stopped production decades ago, you’re left with few options. Junkyards yield diminishing returns, and when you do find that elusive part, it often comes with astronomical pricing that can derail your entire restoration budget.
But here’s the good news: modern reverse engineering technology has revolutionized how we approach classic car restoration. Our team at RDS has helped hundreds of vintage automobile enthusiasts recreate components that haven’t been manufactured since the Johnson administration.
In this comprehensive guide, we’ll reveal the five most powerful tools that professional reverse engineers use to breathe new life into classic automobiles. These aren’t just any tools – they’re the exact solutions we employ daily to help automotive restoration specialists overcome their toughest challenges.
What Is Reverse Engineering in Classic Car Restoration?
Before diving into the tools, let’s clarify what automotive reverse engineering actually entails.
Reverse engineering in the automotive context is the process of examining an existing part to understand its design, functionality, and specifications to recreate it with identical or improved performance characteristics. For classic cars, this means taking an original (often damaged) component and creating a perfect replica when replacements are no longer manufactured.
The National Institute of Standards and Technology (NIST) recognizes reverse engineering as a critical process for preserving engineering heritage and advancing manufacturing capabilities. In the classic car world, it’s the difference between a vehicle being restored or remaining permanently garaged.
Why Traditional Methods Fall Short
For decades, classic car enthusiasts relied on:
- Painstaking hand measurements with calipers and micrometers
- Physical templates and pattern making
- Trial-and-error machining
- Best-guess engineering based on similar parts
These approaches, while better than nothing, produce inconsistent results, waste valuable materials, and often fail to capture complex geometries. The result? Parts that almost fit, but not quite – leading to poor performance, accelerated wear, and potential safety issues.
Modern reverse engineering tools change everything.
Tool #1: Professional-Grade 3D Scanners
At the foundation of modern automotive reverse engineering sits the 3D scanner – arguably the most transformative tool in the industry. These devices capture thousands of measurements per second, creating a highly accurate digital representation of physical objects.
Types of 3D Scanners for Automotive Applications
- Structured Light Scanners: Project light patterns onto objects to capture surface details
- Laser Triangulation Scanners: Use laser lines to capture precise measurements
- Photogrammetry Systems: Create 3D models from multiple photographs
The Society of Automotive Engineers (SAE International) has established standards for 3D scanning accuracy in automotive applications, with professional-grade scanners achieving tolerances of ±0.025mm – far more precise than what’s possible with manual measurements.
Real-World Application
When our team at RDS faced the challenge of recreating a cracked cylinder head from a 1956 Mercedes-Benz 300SL “Gullwing,” we employed our ATOS structured light scanner. The original part – a complex casting with internal cooling channels and precise valve seat dimensions – would have been impossible to recreate using traditional methods.
The scanning process captured over 2 million individual measurement points in under 30 minutes, preserving every detail down to the original casting marks. This level of detail ensures that replacement parts maintain not just functionality, but historical accuracy.
“3D scanning has changed everything for us. What used to take weeks of pattern-making now happens in hours, with far greater precision.” – Classic Car Restoration Specialist
Tool #2: Advanced CAD Software
Once a component has been scanned, the resulting point cloud must be transformed into a workable 3D model. This is where Computer-Aided Design (CAD) software becomes essential.
Top CAD Programs for Automotive Reverse Engineering
- Solidworks: Industry-standard parametric modeling software
- Autodesk Fusion 360: Cloud-based modeling with powerful reverse engineering tools
- Geomagic Design X: Specialized software for converting scan data to CAD models
The American Society of Mechanical Engineers (ASME) emphasizes that proper CAD modeling is critical for maintaining design intent – ensuring that the reverse engineered component will function as originally intended.
The Parametric Advantage
Modern CAD software doesn’t just create static models – it builds parametric, feature-based representations that capture design intent. This means:
- Dimensions can be easily modified if needed
- Features like fillets, chamfers, and holes are recognized as such
- The part’s history and construction method are preserved
- The model can be optimized for modern manufacturing methods
At RDS, our engineers typically spend 12-15 hours converting complex scan data into fully parametric models. This investment pays dividends when modifications are needed or when the part must interface with other components.
Beyond Exact Replication
Sometimes, the original part design had flaws that contributed to its failure. Modern CAD tools allow our team to identify these weaknesses and address them in the redesign process.
For a classic Jaguar E-Type oil pump that regularly failed due to internal pressure spikes, we maintained the exact external dimensions while redesigning the internal channels to improve oil flow. The result? A part that looks identical to the original but delivers significantly improved reliability.
Tool #3: FEA (Finite Element Analysis) Software
Once a component has been modeled, how do you ensure it will perform as well as (or better than) the original under real-world conditions? This is where Finite Element Analysis (FEA) software becomes invaluable.
FEA divides complex parts into thousands of small elements, then simulates physical forces to predict how the part will behave under stress, heat, vibration, and other conditions.
Critical for High-Stress Components
This tool becomes particularly crucial for parts like:
- Engine components subject to heat and pressure
- Suspension elements that bear vehicle weight
- Transmission gears that transfer power
- Structural elements that contribute to crash safety
According to research from the Department of Transportation (DOT), properly engineered replacement parts must meet or exceed original equipment specifications to maintain vehicle safety characteristics.
Case Study: Recreating a Vintage Ferrari Connecting Rod
When tasked with reproducing connecting rods for a rare Ferrari V12 engine, our team at RDS used FEA to simulate the part under operating conditions reaching 7,000 RPM and temperatures exceeding 200°F.
The analysis revealed stress concentrations not visible in the physical inspection. By slightly modifying material thickness in these areas (by less than 0.5mm), we produced a part that maintained historical accuracy while providing a 35% improvement in fatigue resistance.
Tool #4: Materials Analysis Equipment
Understanding what the original component was made from is essential for faithful reproduction. Modern materials analysis equipment allows engineers to identify exact alloy compositions, heat treatments, and manufacturing processes.
Common Analysis Methods
- X-Ray Fluorescence (XRF): Identifies metal alloy compositions
- Hardness Testing: Measures material hardness at different points
- Metallographic Analysis: Examines microstructure to determine manufacturing processes
- Scanning Electron Microscopy (SEM): Reveals surface details at microscopic levels
The National Institute for Automotive Service Excellence (ASE) recommends that replacement parts match or exceed the material specifications of original components to ensure proper performance and safety.
Material Selection Challenges
Classic car components often used materials that are no longer common or contain elements now recognized as hazardous. For example:
- Lead-based bearing materials
- Asbestos clutch facings
- Cadmium-plated fasteners
- Chrome-plated parts with hexavalent chromium
Our materials scientists work to identify modern, safe alternatives that maintain the essential performance characteristics while eliminating hazardous substances – an approach endorsed by the Environmental Protection Agency (EPA) for vintage vehicle maintenance.
Tool #5: Advanced Manufacturing Technologies
The final piece of the reverse engineering puzzle is actually producing the newly designed component. Modern manufacturing technologies have expanded what’s possible for low-volume production of complex parts.

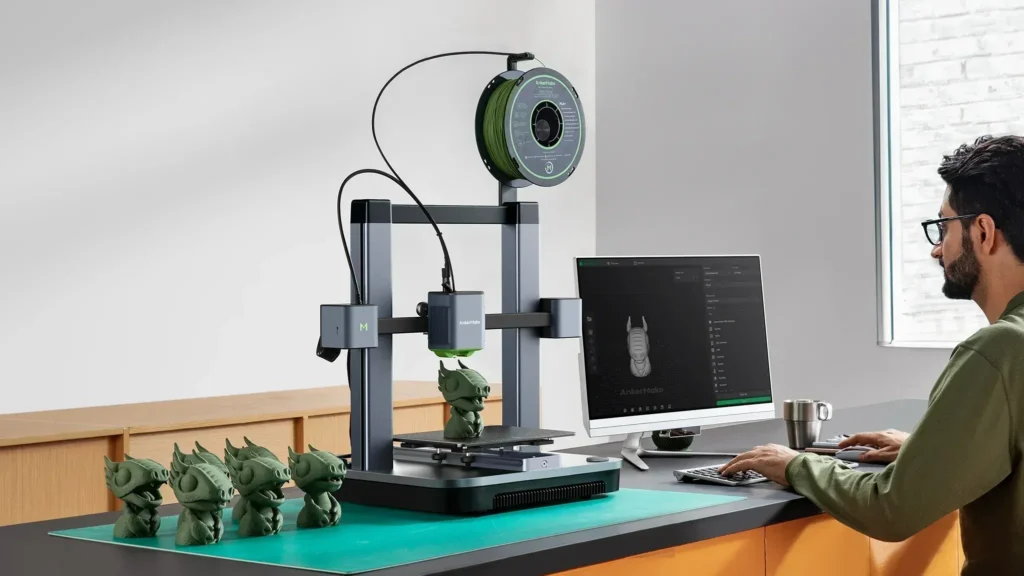

3D Printing for Complex Geometries
For components with intricate internal features or complex shapes, additive manufacturing (3D printing) has been revolutionary. Our facility at RDS utilizes several technologies:
- Direct Metal Laser Sintering (DMLS): Creates fully-dense metal parts
- Stereolithography (SLA): Produces high-detail plastic components
- Selective Laser Sintering (SLS): Builds durable nylon parts
The Additive Manufacturing Users Group (AMUG) has documented how these technologies are particularly valuable for classic car restoration, where traditional manufacturing methods would require prohibitively expensive tooling for small production runs.
CNC Machining for Precision Parts
For components requiring tight tolerances and specific material properties, multi-axis CNC machining remains the gold standard. Modern 5-axis machining centers can create complex shapes that would have been impossible when many classic cars were originally produced.
Our machinists routinely produce parts with tolerances of ±0.001″ – often exceeding the precision of the original manufacturing processes.
Case Study: Recreating a Vintage Carburetor Body
When approached to recreate a carburetor body for a 1959 Corvette, we employed a hybrid approach:
- 3D scanning captured the complex external and internal geometries
- CAD modeling recreated the exact dimensions and passages
- FEA simulation verified flow characteristics
- Material analysis identified the original zinc alloy composition
- CNC machining produced the main body from solid aluminum
- Specialized surface treatments reproduced the original appearance
The result was visually indistinguishable from the original but manufactured from a more durable alloy that resists the corrosion problems common to the original part.
The Process in Action: From Failed Part to Functional Component
Let’s walk through a typical reverse engineering workflow for a classic car component, using the example of a cracked transmission case from a 1963 Porsche 356:
- Assessment: The damaged part is examined to understand failure modes and design requirements
- Cleaning and Preparation: The component is thoroughly cleaned and prepared for scanning
- 3D Scanning: Complete external and internal geometry is captured (see our scanning process)
- CAD Modeling: Scan data is converted to a parametric 3D model
- Design Analysis: FEA simulation identifies stress patterns and potential weaknesses
- Design Optimization: The model is refined to address any identified issues
- Material Selection: Appropriate materials are chosen based on performance requirements
- Manufacturing Planning: The optimal production method is determined
- Production: The new component is manufactured using appropriate technologies
- Quality Control: The finished part is inspected and compared to original specifications
- Testing: When possible, the component is tested under real-world conditions
- Documentation: Complete specifications are recorded for future reference
This systematic approach ensures that the final product meets or exceeds the performance of the original component, with documented quality every step of the way.
Beyond Basic Reproduction: Enhancing Classic Car Components
While exact replication is often the goal, reverse engineering also creates opportunities to address known weaknesses in original designs. With owner permission, our engineers at RDS can implement subtle improvements that preserve authenticity while enhancing:
- Reliability: Addressing known failure points
- Durability: Utilizing modern materials with superior properties
- Performance: Optimizing flow characteristics or reducing friction
- Maintenance: Improving serviceability for future repairs
The Antique Automobile Club of America (AACA) acknowledges that tasteful, invisible upgrades can be appropriate when they extend a vehicle’s usable life without compromising historical significance.
The Purist’s Dilemma
For museum-quality restorations, absolute historical accuracy may take precedence over performance improvements. Our engineers understand this philosophy and can produce components that are metallurgically and dimensionally identical to factory specifications when desired.
The Economics of Reverse Engineering Classic Car Parts
Is reverse engineering cost-effective compared to hunting for original parts? The answer depends on several factors:
- Rarity of the original component
- Complexity of the part geometry
- Material requirements
- Production quantity needed
- Consequences of component failure
For commonly needed parts from popular classics, reverse engineering can enable small production runs that make replacement parts economically viable. For extremely rare vehicles, the cost comparison becomes irrelevant when original parts simply don’t exist at any price.
Choosing a Reverse Engineering Partner
If you’re considering professional reverse engineering services for your classic car project, look for these qualifications:
- Specific experience with automotive components
- Complete in-house capabilities from scanning to production
- Documented quality control processes
- Understanding of classic car restoration standards
- Ability to work with a range of materials
- Portfolio of successful automotive projects
At RDS, we pride ourselves on meeting all these criteria while maintaining transparent communication throughout the process.
Conclusion: The Future of Classic Car Preservation
The tools and techniques of modern reverse engineering have transformed what’s possible in classic car restoration. Parts once considered “unobtainium” can now be recreated with remarkable accuracy, ensuring that automotive history remains on the road rather than relegated to static displays.
As these technologies continue to advance, we anticipate even greater possibilities:
- More affordable scanning solutions for enthusiast use
- Expanded material options that better replicate vintage properties
- Cloud-based part libraries for commonly needed components
- Semi-automated design optimization for improved performance
Whether you’re restoring a priceless Ferrari or a beloved family heirloom Mustang, these reverse engineering tools provide solutions that were unimaginable just a decade ago.
Have you struggled to find a specific classic car part? Are you facing a restoration challenge that might benefit from reverse engineering? Share your experience in the comments below, or contact our team to discuss how we might help bring your classic back to life.
This article was written by the automotive reverse engineering team at RDS, specialists in preserving automotive history through advanced engineering solutions.
