How to Set Up Your First FDM Printer for Prototyping Success

The Critical First Steps That Determine Your Prototyping Success

Have you just unboxed your first FDM 3D printer, excited about the prototyping possibilities but overwhelmed by the setup process? Or perhaps you’ve been using your printer with mixed results, wondering why your prototypes don’t match the quality you see from professionals? The difference between frustration and success often lies in how you configure your machine from the very beginning.

For new users, the initial setup process can seem deceptively simple—follow the manufacturer’s instructions, load some filament, and start printing. Yet professional prototypers know that generic setup guidelines rarely deliver the precision, reliability, and quality needed for serious prototyping work. Without proper configuration, you might face inconsistent results, failed prints, and prototypes that don’t effectively serve their purpose.

We’ve helped countless clients transform their prototyping capabilities through proper 3D printer setup. We’ve refined our approach through years of professional experience, identifying the critical adjustments that manufacturers often don’t emphasize but that make all the difference for prototyping applications. In this comprehensive guide, we’ll walk you through the essential steps to set up your FDM printer specifically for creating functional, accurate prototypes.

Understanding Prototyping Requirements

The Unique Demands of Prototype Printing

Before diving into specific setup procedures, it’s important to understand how prototyping differs from general 3D printing:

Core Prototyping Requirements

Dimensional accuracy: Prototypes often need to integrate with existing components
Functional strength: Many prototypes must withstand testing and handling
Surface quality: Presentation prototypes require professional appearance
Material-specific optimization: Different prototype purposes require different materials
Repeatability: Iterative development demands consistent results between versions

According to the National Institute of Standards and Technology (NIST), dimensional accuracy is the most frequently cited requirement for functional prototyping, with 84% of professional users ranking it as their top priority.

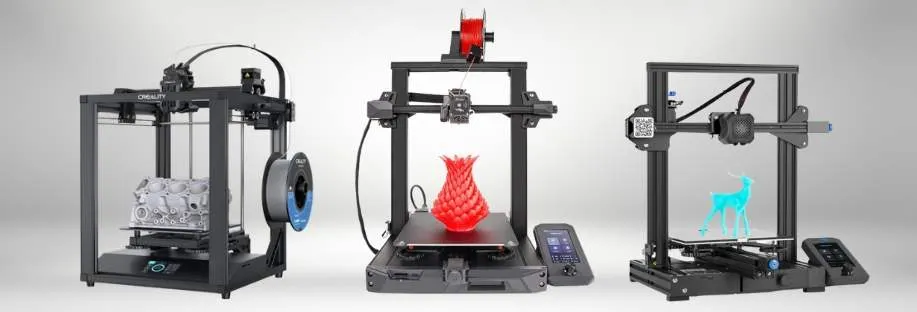

Selecting the Right Printer for Prototyping

If you haven’t purchased a printer yet, consider these factors:

Build volume: Minimum 200 × 200 × 200mm for most prototyping applications
Heated bed: Essential for materials beyond basic PLA
Enclosed chamber: Beneficial for dimensional stability with engineering materials
Dual extrusion: Valuable for soluble supports in complex prototypes
32-bit controller: Provides better motion control for precision parts

Our product design team finds that enclosed printers with direct-drive extruders typically provide the most consistent results for functional prototyping, though they come at a higher price point.

Physical Setup and Hardware Configuration

Optimal Printer Placement

Where you place your printer significantly impacts prototyping success:

Stable surface: Vibration affects precision—use solid tables or anti-vibration pads
Environmental control: Maintain consistent temperature (20-25°C ideal)
Humidity considerations: Keep relative humidity between 30-50%
Ventilation needs: Ensure adequate airflow, especially for technical materials
Accessibility for maintenance: Allow space for adjustments and upkeep

Research from the America Makes institute shows that environmental variability is responsible for up to 30% of dimensional inconsistency in FDM printing—a critical factor for functional prototypes.

Critical Hardware Adjustments

These hardware adjustments create the foundation for prototyping success:

Frame Rigidity Optimization

Bolt tightening sequence: Work in a cross-pattern for even tension
Frame bracing options: Consider printable or commercial braces for weaker frames
Vibration dampening: Install rubber feet or isolation mounts
Resonance testing: Identify and address frame weak points

Motion System Calibration

Belt tension adjustment: Proper tension prevents positional errors
Pulley alignment verification: Misalignment causes layer shifting
Linear rail/rod inspection: Check for smooth, consistent movement
Lubrication protocol: Apply appropriate lubricants to moving components

According to a study published in the Journal of Manufacturing Science and Engineering, proper motion system calibration can improve dimensional accuracy by up to 40% in consumer-grade FDM printers.

Extrusion System Optimization

Hotend assembly inspection: Ensure proper component seating
Heat break seating: Verify correct installation to prevent jams
Cooling fan positioning: Optimize for consistent material cooling
Nozzle selection: Choose appropriate size for your prototyping needs

Our 3D printing service typically uses 0.4mm nozzles for general prototyping, moving to 0.25mm for high-detail areas and 0.6mm for strength-focused, faster builds.

Essential Calibration Procedures for Precision

Foundational Calibration Steps

These calibrations form the backbone of accurate prototype printing:

Precise Bed Leveling

Manual leveling technique: Systematic approach with feeler gauge
Automatic mesh leveling: Configuration for maximum precision
Z-offset fine-tuning: Finding the perfect first layer height
Level verification pattern: Validating even bed height across the surface

Our technicians use a 5-point bed leveling approach with a 0.1mm feeler gauge rather than the traditional paper method for more precise results.

Extruder Calibration

E-steps calibration process: Precise measurement of filament delivery
Flow rate fine-tuning: Material-specific extrusion adjustments
Retraction optimization: Preventing stringing while maintaining accuracy
Pressure advance/linear advance setup: Compensating for pressure buildup

ASTM International’s additive manufacturing standards emphasize the importance of proper extrusion calibration, noting that even 3-5% under or over-extrusion can significantly impact prototype functionality.

Motion System Tuning

Stepper motor current adjustment: Finding the balance between torque and heat
Acceleration and jerk settings: Optimizing for precision vs. speed
Backlash compensation: Addressing mechanical play in the system
Linear advance configuration: Compensating for filament pressure variations

Temperature System Verification

PID tuning procedure: Ensuring stable hotend temperature
Thermistor verification: Testing accuracy of temperature reporting
Bed temperature mapping: Identifying any cold spots or variations
Thermal camera assessment: If available, visually verifying heating uniformity

According to research from the Massachusetts Institute of Technology (MIT), temperature stability within ±2°C is critical for dimensional consistency in precision prototyping.

Advanced Calibration for Professional Results

These additional calibrations elevate your prototyping capabilities:

Dimensional Accuracy Calibration

XYZ calibration cube analysis: Measuring and adjusting for scaling factors
Hole size compensation: Addressing the tendency for holes to print undersized
Outer dimension compensation: Fine-tuning external measurements
Material-specific calibration: Accounting for different shrinkage rates

We maintain material-specific calibration profiles for each printer, resulting in dimensional accuracy within ±0.1mm for most prototyping applications.

Filament-Specific Calibration

Temperature tower testing: Finding the optimal temperature range
Retraction testing: Dialing in perfect retraction settings
Bridge and overhang optimization: Maximizing unsupported feature quality
Layer adhesion testing: Ensuring adequate structural strength

Our product design team runs these calibration tests for each new filament brand or type, maintaining a database of optimal settings for different prototyping requirements.

Software Configuration for Prototyping

Slicing Software Selection and Setup

Your slicer configuration significantly impacts prototype quality:

Recommended Slicers for Prototyping

Simplify3D: Excellent control for professional prototyping (paid)
PrusaSlicer/SuperSlicer: Powerful free options with advanced capabilities
Ultimaker Cura: User-friendly with extensive material profiles
IdeaMaker: Growing option with unique features

Essential Profile Configuration

Profile organization strategy: Structuring profiles for different prototype needs
Material-specific profile development: Creating optimized settings for each material
Prototype-type profiles: Different settings for visual vs. functional prototypes
Version control for profiles: Tracking successful settings as you refine them

According to the FDA’s guidance on 3D printing medical devices, consistent slicing parameters are critical for reproducible production of functional prototypes—a principle that applies to all prototyping applications.

Critical Slicer Settings for Prototyping

These settings deserve special attention for prototype quality:

Layer Configuration

Layer height selection: Balancing detail and strength (0.1-0.2mm typical)
First layer settings: Essential for build success and dimensional accuracy
Adaptive layer height usage: When and how to vary layer height
Minimum layer time settings: Preventing issues with small layers

Wall and Infill Optimization

Wall count for strength: Typically 3-4 for functional prototypes
Infill percentage guidelines: 15-25% for visual, 30-50% for functional prototypes
Infill pattern selection: Functional differences between patterns
Top/bottom layer count: Ensuring smooth surfaces where needed

Research from the Journal of Manufacturing Processes indicates that wall configuration has a greater impact on prototype strength than infill percentage above 25%—guiding our recommendation for prioritizing adequate wall count.

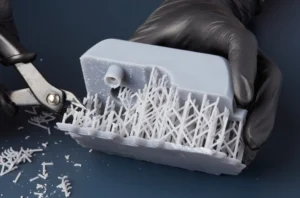

Support Configuration for Prototyping

Support interface settings: Creating removable yet effective supports
Overhang angle threshold: Finding the ideal balance (45-60° typical)
Support density optimization: Enough for success, minimal for easy removal
Support placement strategies: Manual placement for critical features

When our reverse engineering team creates prototypes of complex parts, they often use customized support strategies with dense interfaces but minimal intermediate support structures.

Material Selection and Handling for Prototyping

Choosing the Right Materials for Different Prototype Types

Different prototyping applications demand different materials:

Visual Prototype Materials

PLA/PLA+: Excellent detail, easy printing, limited functional testing
ASA: Good detail with superior UV resistance for outdoor prototypes
Specialty filaments: Wood, metal-filled, and other visual effect materials
Material considerations: Appearance, dimensional accuracy, ease of finishing

Functional Prototype Materials

PETG: Good balance of strength, ease of printing, and durability
ABS/ASA: Heat resistance and strength for mechanical testing

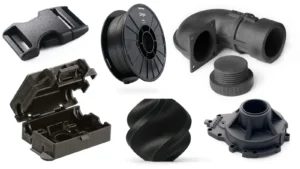

Nylon: Superior toughness and wear resistance
Material considerations: Strength, flexibility, temperature resistance, chemical compatibility

Our 3D printing service most frequently uses PETG for functional prototypes due to its excellent balance of printability, strength, and chemical resistance.

Engineering-Grade Prototype Materials

Carbon fiber composites: Rigidity and lightweight properties
Polycarbonate: Impact resistance and transparency
High-temperature materials: For heat testing applications
Material considerations: Specific mechanical properties, environmental resistance

According to ASTM International’s materials testing standards, proper material selection can eliminate up to 70% of prototype failures by aligning material properties with intended usage.

Proper Filament Handling and Storage

Material handling significantly impacts prototype quality:

Moisture control solutions: Dry boxes, desiccants, and filament dryers
Temperature-controlled storage: Preventing degradation over time
Handling best practices: Minimizing contamination and damage
Filament monitoring: Tracking age and exposure of materials

Our material handling protocols include vacuum-sealed storage with desiccant for all engineering materials and regular oven drying before critical prototype prints.

First Prints and Calibration Validation

Strategic First Prints

Start with these prints to validate your setup:

Calibration cube sequence: Verifying dimensional accuracy
Overhang test print: Assessing cooling and support settings
Bridging test: Evaluating bridging capability
Tolerance test: Checking fit for assemblies
Material-specific test prints: Validating settings for your chosen filament

Our 3D scanning specialists use comparison analysis between printed calibration models and their digital files to identify and correct specific dimensional discrepancies.

Analyzing First Print Results

Systematically evaluate your test prints:

Dimensional analysis: Measuring with digital calipers
Surface quality assessment: Visual and tactile evaluation
Layer adhesion testing: Checking structural integrity
Feature reproduction evaluation: Examining details and geometries
Iterative adjustment approach: Methodically refining settings

According to the National Institute of Standards and Technology (NIST), a systematic approach to first print evaluation can identify up to 90% of setup issues before proceeding to complex prototypes.

Establishing Prototyping Workflows

Creating a Prototype-Ready System

Develop these systems for consistent results:

Pre-printing checklist: Systematic verification before each print
Material change procedure: Preventing cross-contamination
Maintenance schedule: Regular upkeep for reliable performance
Calibration validation frequency: Periodic verification of key parameters
Documentation system: Tracking successful configurations

Our professional workflow at RDS includes digital “print passports” that record every setting, material, and environmental factor for each successful prototype, allowing precise reproduction of results.

Design Considerations for FDM Prototyping

Optimize your designs for FDM prototyping:

Feature size limitations: Understanding your printer’s capabilities
Orientation planning: Designing with print orientation in mind
Support minimization strategies: Design choices that reduce support needs
Assembly considerations: Tolerances for fitted components
Functional testing preparation: Designing for prototype evaluation

When our product design team creates prototype designs, they incorporate specific features like built-in test fixtures, alignment guides, and reinforced test points to enhance prototype functionality.

Advanced Setup for Specific Prototype Types

Configuration for Mechanical Prototypes

Optimize for parts that need to withstand mechanical testing:

Strength-focused settings: Wall count, infill density, pattern selection
Layer adhesion optimization: Temperature and speed adjustments
Feature reinforcement strategies: Design modifications for strength
Material selection guidance: Matching materials to mechanical requirements

Configuration for Visual Prototypes

Optimize for parts that need to look professional:

Surface quality settings: Layer height, outer wall parameters
Detail enhancement techniques: Temperature and speed fine-tuning
Post-processing preparation: Designing for finishing operations
Color and material considerations: Choosing filaments for appearance

Configuration for Fit-Test Prototypes

Optimize for parts that need to assemble with existing components:

Dimensional accuracy focus: Calibration and compensation settings
Tolerance adjustment techniques: Fine-tuning for perfect fit
Test-fit design features: Incorporating easy validation elements
Iteration efficiency strategies: Quick testing approaches

Research from America Makes indicates that different prototype applications require significantly different printer configurations, with dimensional accuracy settings for fit-testing differing by 30-40% from strength-optimized settings.

Maintaining Your Prototyping Setup

Preventive Maintenance Schedule

Establish these routines for consistent performance:

Daily/weekly/monthly checklist: Essential maintenance tasks
Key component inspection: What to check and when
Consumable replacement schedule: Nozzles, build surfaces, etc.
Motion system maintenance: Keeping everything running smoothly

Troubleshooting Common Prototyping Issues

Be prepared to address these common challenges:

Dimensional accuracy problems: Causes and solutions
Layer adhesion failures: Diagnosing and fixing
Surface quality issues: Addressing visible defects
Material-specific challenges: Common problems with different filaments

According to a study in the Journal of Manufacturing Technology Management, implementing a formal maintenance protocol reduces prototype rejection rates by up to 60% compared to as-needed maintenance approaches.

Case Studies: Successful Prototyping Setups

Small Business Product Development Case Study

Setup challenge: Limited budget, need for functional prototypes
Solution implemented: Strategic upgrades to entry-level printer
Configuration approach: Focus on reliability and material versatility
Results achieved: 90% reduction in prototype development time

Professional Design Studio Case Study

Setup challenge: Need for both visual and functional prototypes
Solution implemented: Optimized workflow with dual material capabilities
Configuration approach: Swappable profiles for different prototype needs
Results achieved: Client presentation models and functional testing from one machine

Our product design service recently helped a client reduce their prototype development cycle from 6 weeks to 10 days by implementing the calibration and setup procedures outlined in this guide.

Conclusion: Your Path to Prototyping Mastery

Setting up your FDM printer specifically for prototyping success is a front-loaded investment that pays dividends through every prototype you create. By following the systematic approach outlined in this guide—from initial hardware optimization through software configuration and material selection—you’ll build a foundation for reliable, accurate prototypes that serve their intended purpose.

Remember that prototyping is an iterative process, both in the designs you create and in your printing setup. Each prototype provides an opportunity to refine your configuration, gradually building a system tailored to your specific needs. Document your successes, learn from challenges, and continuously optimize your setup as you gain experience.

Whether you’re creating conceptual models, functional test pieces, or pre-production prototypes, the time invested in proper setup will be returned many times over in saved material, reduced frustration, and most importantly, better prototypes that more effectively validate your designs.

Are you setting up a new printer for prototyping? What specific challenges are you facing in your prototyping workflow? Share your experience in the comments below, or reach out to our team at RDS to discuss how our expertise in 3D printing and product design can help optimize your prototyping process!
