Have you ever watched a complex object transform into a perfect digital replica within hours instead of days? That’s the power of modern 3D scanning—but choosing the wrong scanning technology can mean the difference between project success and costly failure.
If you’re struggling to decide which 3D scanning method will deliver the accuracy, speed, and detail your project demands, you’re not alone. Many professionals find themselves lost in technical specifications and conflicting advice.
We’ve helped hundreds of clients navigate this exact challenge, and today we’re sharing our expertise to help you confidently select the ideal scanning solution for your unique requirements.
Understanding the Core 3D Scanning Technologies
Before diving into specific comparisons, let’s establish a clear understanding of the main technologies we’ll be discussing.
Laser-Based 3D Scanning: Precision Through Light
Laser-based scanning uses precisely controlled beams of light to capture an object’s geometry. This family of technologies includes several specialized approaches:
- Laser Triangulation Scanning: Measures the reflection angle of a laser beam to capture fine surface details with exceptional accuracy.
- Time-of-Flight (ToF) Scanning: Determines distances by measuring the exact time it takes for a laser pulse to bounce back from the object’s surface.

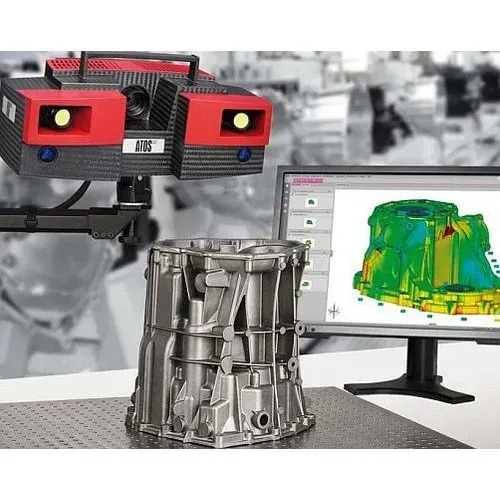

Structured Light 3D Scanning: Pattern Recognition Power
Structured light scanning projects carefully designed light patterns onto an object. By analyzing how these patterns deform when projected onto the surface, the system creates highly accurate 3D models. This technology excels in manufacturing, medical applications, and facial recognition systems.
Photogrammetry: From Images to Models
Photogrammetry reconstructs 3D models using multiple 2D photographs taken from different angles. It’s especially valuable for archaeology, video game asset creation, virtual reality experiences, and forensic investigations.
Laser vs. Structured Light: The Critical Differences That Matter
When deciding between laser and structured light scanning for your project, several key factors will influence your decision.
Accuracy Comparison: When Every Micron Matters
Laser scanning generally offers exceptional accuracy for specific applications. RDS has implemented laser triangulation systems capable of sub-micron precision for medical device manufacturers, where tolerances are critical.
Structured light systems provide excellent overall accuracy that’s sufficient for most industrial applications. According to research published by the National Institute of Standards and Technology, structured light scanners can achieve accuracies between 0.05mm and 0.1mm for most industrial applications.
The practical difference? Laser scanning might be your only option when measuring features smaller than a human hair, while structured light excels at capturing complete objects with consistent accuracy.
Speed of Capture: Time is Money
One of the most significant differences between these technologies is scanning speed:
- Laser Scanning: Captures data point-by-point or line-by-line, which can be time-consuming for large or complex objects.
- Structured Light: Captures entire surface areas simultaneously, dramatically reducing scanning time for many applications.
When our team scanned an automotive dashboard using both methods, the structured light system completed the job in approximately 30 minutes, while the laser scanner required nearly two hours for comparable coverage. This speed advantage makes structured light particularly valuable for high-volume production environments.
Object Size and Scanning Environment
The size of your object and the scanning environment play crucial roles in technology selection:
- Laser Scanning: Works well across various scales, from tiny precision components to large industrial equipment. Time-of-Flight systems can effectively scan objects hundreds of meters away.
- Structured Light: Typically optimal for small to medium-sized objects within a controlled environment. Beyond certain distances, the projected patterns become too diffuse for accurate measurement.
Our engineering team has found that environmental factors significantly impact results. When scanning outdoors or in challenging industrial environments, laser systems often prove more robust against ambient light interference compared to structured light alternatives.
Surface Properties: Not All Materials Scan Equally
The material composition of your object dramatically affects scanning performance:
- Transparent or Translucent Materials: Both technologies struggle with glass, clear plastics, and translucent materials. However, laser systems generally perform better on transparent surfaces.
- Dark or Reflective Surfaces: Structured light systems often struggle with very dark or highly reflective surfaces, while certain laser scanners can be calibrated to handle these conditions more effectively.
- Complex Textures: Structured light typically outperforms laser scanning when capturing intricate surface textures and patterns.
For example, when our team scanned a glossy automotive component, we needed to apply a temporary matte spray to achieve acceptable results with structured light, while our laser system required minimal surface preparation.
Color Capture Capabilities
If color information is important for your project:
- Laser Scanning: Many systems capture only geometry without color information. Advanced systems may include separate color cameras.
- Structured Light: Often includes built-in color capture capabilities, creating textured models in a single pass.
- Photogrammetry: Provides the most photorealistic color reproduction, capturing surface texture and color from actual photographs.
For applications like cultural heritage preservation, the superior color accuracy of photogrammetry or color-capable structured light systems delivers significantly better results than monochrome laser scans.
Industry-Specific Applications: Which Technology Excels Where?
Different industries have unique requirements that favor specific scanning approaches. Let’s explore the optimal technology choices for several key sectors.
Manufacturing and Quality Control
In manufacturing, both technologies have valuable applications:
- Laser Triangulation excels for:
- In-line quality control where specific measurements need constant verification
- Extremely tight tolerance parts (aerospace, medical devices)
- Integration into automated production systems
- Structured Light proves superior for:
- Complete part inspection against CAD models
- Complex freeform surface verification
- Rapid prototyping validation
A study by the IEEE found that integrated structured light systems reduced quality control time by up to 70% compared to traditional CMM measurement in automotive manufacturing.
Medical and Healthcare Applications
The healthcare sector utilizes both technologies for different applications:
- Laser Scanning is preferred for:
- Dental applications requiring sub-micron accuracy
- Medical research requiring precise tissue measurements
- Long-term monitoring of small anatomical changes
- Structured Light demonstrates advantages for:
- Creating custom prosthetics and orthotics
- Facial scanning for reconstructive surgery planning
- Body mapping for ergonomic product design
The Journal of Medical Devices has published research indicating that structured light scanning reduced custom prosthetic development time by over 40% while maintaining or improving fit accuracy.
Archeology and Cultural Heritage Preservation
For preserving our cultural heritage:
- Laser Scanning (particularly Time-of-Flight) works best for:
- Documenting large structures and sites
- Creating precise architectural records
- Long-range scanning of inaccessible areas
- Photogrammetry is often preferred for:
- Documenting artifacts with complex textures and colors
- Creating virtual museum exhibits
- Field documentation with minimal equipment
The Smithsonian Institution has pioneered using both technologies in combination, using structured light and photogrammetry for object digitization while employing laser scanning for larger environmental contexts.
Making Your Decision: A Practical Guide
To help you navigate your technology selection, we’ve developed a simple decision framework based on our experience with hundreds of scanning projects.
Step 1: Define Your Primary Requirements
Start by answering these critical questions:
- What level of accuracy do you absolutely require? (Sub-micron, 0.1mm, 1mm+)
- Is scanning speed more important than absolute precision?
- Will you scan in controlled environments or variable conditions?
- Do you need color/texture information or just geometry?
- What is the size range of objects you’ll be scanning?
Step 2: Consider Your Budget and Long-term Needs
Different scanning technologies come with varying cost considerations:
- Laser Scanning Systems: Generally higher initial investment but potentially lower operating costs
- Structured Light Systems: Mid-range investment with excellent versatility
- Photogrammetry: Lowest equipment cost but may require more post-processing time
When working with clients, we often find that future scanning needs expand beyond initial projects. Consider whether your scanning requirements might evolve over time.
Step 3: Evaluate Available Resources
Assess your team’s capabilities and available resources:
- Do you have staff experienced with 3D scanning technology?
- What post-processing software do you currently use?
- Will you need training or support services?
At RDS, we provide both equipment recommendations and comprehensive scanning services to match your specific requirements and constraints.
Step 4: Test Before Committing
Whenever possible, conduct a test scan of your actual parts:
- Request sample scans from service providers using different technologies
- Compare results against your specific requirements
- Evaluate the entire workflow from scanning to final output
We offer sample scanning services to help clients make informed decisions before committing to a specific technology path.
Real-World Case Studies: Seeing Technology in Action
Case Study 1: Automotive Component Reverse Engineering
A client needed to reverse engineer a discontinued brake component with complex internal geometries.
Challenge: The part included both external surfaces and internal channels that required high accuracy.
Solution: We employed a hybrid approach:
- Structured light scanning captured the external geometry rapidly
- Laser triangulation was used for precise measurement of critical mating surfaces
- Reverse engineering software combined both datasets into a complete CAD model
Result: The client received a manufacturing-ready model with ±0.05mm accuracy in critical areas and ±0.2mm accuracy for non-critical features, reducing development time by approximately 60%.
Case Study 2: Medical Prosthetic Development
A medical device manufacturer needed to create custom-fit prosthetics based on patient anatomy.
Challenge: The scanning process needed to be fast enough for clinical use while maintaining sufficient accuracy for proper fit.
Solution: We implemented a structured light scanning system with:
- Custom fixturing to standardize patient positioning
- Automated processing workflows to generate ready-to-manufacture models
- Quality verification protocols ensuring consistent results
Result: The complete scan-to-model process was reduced to under 15 minutes, allowing same-day fitting and adjustment. Patient satisfaction scores increased by 35% compared to traditional molding techniques.
Case Study 3: Archaeological Artifact Documentation
A museum needed to digitize a collection of ancient pottery with detailed surface inscriptions.
Challenge: The artifacts featured both fine surface detail and color information that needed precise documentation.
Solution: We developed a custom workflow combining:
- Photogrammetry to capture accurate color and texture information
- Structured light scanning for precise geometric measurement
- Specialized data fusion techniques to combine the best aspects of both datasets
Result: The museum obtained research-grade 3D models with sub-millimeter accuracy and photo-realistic textures suitable for both scholarly analysis and public display. The entire collection was digitized in one-third the originally estimated time.
Technology Trends: The Future of 3D Scanning
The field of 3D scanning continues to evolve rapidly. Here are key developments to watch:
- AI-Enhanced Processing: Machine learning algorithms are dramatically improving the automatic cleanup and feature recognition of scan data
- Portable Scanning Solutions: Both laser and structured light technologies are becoming more compact and field-deployable
- Sensor Fusion: Next-generation systems increasingly combine multiple scanning technologies to overcome individual limitations
According to the IEEE Sensors Journal, we can expect scanning speeds to double approximately every 3-4 years while system costs continue to decrease, making advanced scanning accessible to smaller organizations.
Conclusion: Making Your Scanning Technology Decision
Selecting between laser scanning and structured light technology doesn’t have to be overwhelming. By carefully considering your specific accuracy requirements, object characteristics, environmental conditions, and budget constraints, you can confidently choose the technology that will deliver optimal results for your project.
Remember these key takeaways:
- Laser scanning generally offers superior precision for small features and performs better in variable lighting conditions
- Structured light scanning provides faster capture speeds and often better results on complex textures
- Photogrammetry delivers the most photorealistic results for applications where visual fidelity is crucial
Ready to move forward with your 3D scanning project? RDS offers comprehensive consultation services to help you select the ideal scanning technology for your specific application. Our team brings decades of combined experience across manufacturing, medical, and cultural heritage scanning projects.
